Boutique Range : Sliding Door
Overview
This Classic Sliding Door is a product for the residential market having evolved out of a system designed for the high rise apartments.
This commercial background means that besides a modern designer look, this Sliding Door is packed with a multitude of performance features, many of which are simply not available in competing products:
Rather than unsightly exposed tracks found in most residential doors, Carinya has a complete range of threshold and jamb in-fills as well as end caps to conceal all cavities. This not only provides a superior quality, commercial grade finish but also minimises places for insects, dirt and grit to gather.
An internally concealed weather flap also reduces air and water infiltration and minimises insect intrusion through the drain holes.
All Carinya sliding doors feature a choice of sill configurations catering for every weather performance requirement, including a wheelchair accessible sill.
There is also a range of attractive interlock options to meet a wide variety of wind load requirements up to the most demanding cyclonic conditions.
Colour Options – Available in any Dulux Powdercoat finish.
Our entire Boutique Range undergoes rigorous testing to ensure it meets Australian Standards AS2047, AS1170, AS1191, and AS3959, ensuring you receive the highest quality and performance.
Hardware
This Sliding Door has been equipped with commercially designed hardware to ensure style and durability.
The Yarra Curve door lock provides functionality and varying finish options for your project. This functional design allows for ease of use and utilises 5 pin cylinder security for peace of mind.
Custom bump stops and end caps have been designed to minimise door slamming, and add to the aesthetic appeal of a professionally finished product, creating a door of unique quality in the residential market.

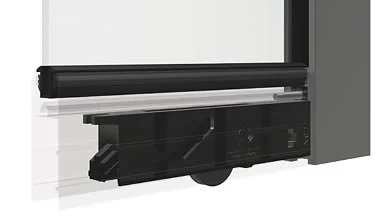

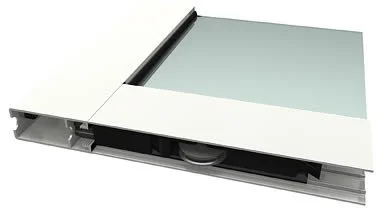

To maximise the performance of your sliding door we have utilised our proprietary Alspec roller system. It’s the same system used throughout our commercial range and is available in two gauges -
Custom: for the majority of loads up to 80kg per panel;
Heavy duty commercial: designed for extra large sashes and major double glazing loads up to 160kg per panel.
Stainless rollers and optional stainless cover track are also available for coastal environments, allowing for enduring performance and durability.
Both roller systems have been designed to interact with the stiles to create a strong and robust panel, minimising movement in joints and opportunities for air infiltration.
Screening
Our products have been designed to accept screening without the need for unsightly adaptors or added material. Door and window screening provides protection from insects and other unwanted 'guests' to your home, whilst minimising the impact on your view.
In addition to standard fibreglass and aluminium insect screening, ODS Windows can also offer the latest technology in high visibility screening using BetterVue® and UltraVue® screening to maximise your view.
Specifications
-
Maximum Sash Height: 2700mm
Maximum Sash Width: 1500mm
Maximum Glass Thickness:10.5mm or 18mm IGU
Maximum Sash Weight: 160kg
Frame width available in 92mm or 150mm
-
Region D Residential Construction for Cyclonic Compliance – Structural / Water & Impact Rated Glass
Double Glazing without adaptors for a premium option
Cyclonic Compliance – Structural / Water & Impact Rated Glass
Low-Rise Multi-Unit Developments
-
A range of sill options available for increased structural, water performance and design flexibility.
A range of internal interlocks complete with end caps for varying wind load requirements.
Integral screening options for security or insect protection.

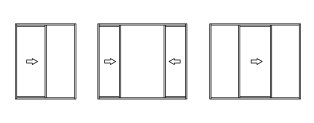

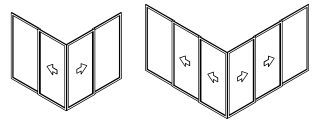

ODS Windows can offer the typical standard configurations below, as well as custom options to suit your requirements:
Color Options
Depending on your requirements, there are many colour and finished options available. ODS Windows can help you through the process of chosing a perfect match for your project.
You have the choice of two finishes:
Powder Coated : A tough and durable option allowing for a wide range of colours. Warranties are available. Depending on your finish option, you will receive a warranty ranging from 7 years (film and colour integrity) to 15 years (film and colour integrity).
Anodised: You may prefer a choice of anodizing, an electro-chemical treatment available in standard finishes, natural anodized and non-standard, bronze and black.
Energy Efficiency
Windows are critical to the energy efficiency of any home. Research by the Sustainable Windows Alliance of Australia shows the typical Australian home can achieve an increase of 2 to 2.5 stars in energy efficiency simply by upgrading the windows.
All our aluminium framed windows and doors have been specifically designed to be environmentally friendly while maintaining thermal and acoustic performance. Unlike many aluminium windows, our range has been designed for eco-friendly glazing options without any alteration to the frame or add-ons.
Our frames are designed for eco-friendly Low E glass, high thermal and high acoustic performance 10.5mm glazing.
To maximise the energy efficiency of your glazing make sure you consult your architect or designer.
