Boutique Range : Double Hung Window

Overview

Our Double Hung Window is a slimline design to complement heritage houses and new homes aiming for a designer look.

This design has many visible advantages over alternative products in addition to its obvious aesthetic qualities. These include:

  • Specifically designed to accommodate screening within the head and sill to deliver that clean professional finish not available with many competitor products.

  • Includes bump stops top and bottom to prevent frame damage.

  • Full perimeter weather piles reduce air and water infiltration.

  • A choice of lockable or latchable handles are available.

  • Colour Options – Available in any Dulux Powdercoat finish.

Our entire Boutique Range undergoes rigorous testing to ensure it meets Australian Standards AS2047, AS1170, AS1191, and AS3959, ensuring you receive the highest quality and performance.

Hardware

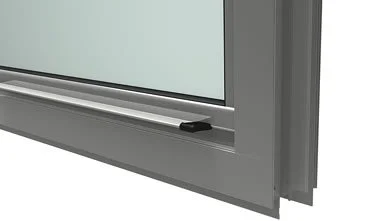

Our Double Hung Window has been designed with matching stylish hardware, with the option for a lockable or non-lockable latch.

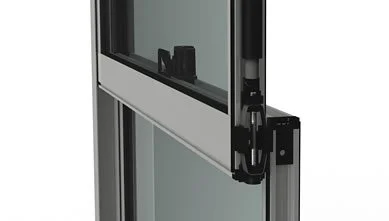

All double hung window sashes feature blocks in all four corners of the sashes. These blocks make the sash more rigid, reducing twist and movement. This reduction in movement increases the performance of the window by reducing opportunities for air, water and dust infiltration. These blocks also interact with the balances in both the top and bottom sashes to provide a stable and secure window.

The spring balances come in a range of lengths and spring strengths to suit a wide variety of different window heights and sash weights. Combined with an adjustable balance friction foot this ensures that your custom made window will operate smoothly for many years to come.

Specially designed finseals are fitted all around both sashes. These seals act as insulation to prevent drafts, dust, light and other contaminants coming in from outside through the edges of the windows.

Specifications

  • Maximum Sash Height: 1090mm

    Maximum Sash Width: 1000mm

    Maximum Glass Thickness:8.5mm Single Glazed

    Maximum Sash Weight: 20kg

    Frame width available in 50mm

  • New Residential Construction

    Window Replacement and Renovation

    Low-Rise Building

  • Choice of screening options BetterVue® and UltraVue® for superior mesh solutions.

    Security screens securely fitted within the head and sill.

    Integrated sidelights, highlights and lowlights.

ODS Windows can offer the typical standard configurations below, as well as custom options to suit your requirements:

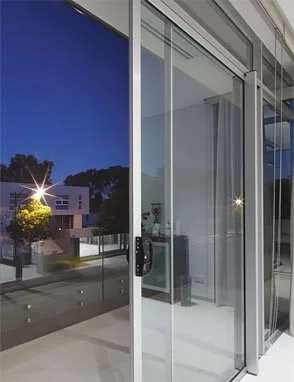

Energy Efficiency

Windows are critical to the energy efficiency of any home. Research by the Sustainable Windows Alliance of Australia shows the typical Australian home can achieve an increase of 2 to 2.5 stars in energy efficiency simply by upgrading the windows.

All our aluminium framed windows and doors have been specifically designed to be environmentally friendly while maintaining thermal and acoustic performance. Unlike many aluminium windows, our range has been designed for eco-friendly glazing options without any alteration to the frame or add-ons.

Our frames are designed for eco-friendly Low E glass, high thermal and high acoustic performance 10.5mm glazing.

To maximise the energy efficiency of your glazing make sure you consult your architect or designer.
